Component Integrated Diaphragms

Component integrated diaphragms reduce cost and components in your assembly

Features & Benefits

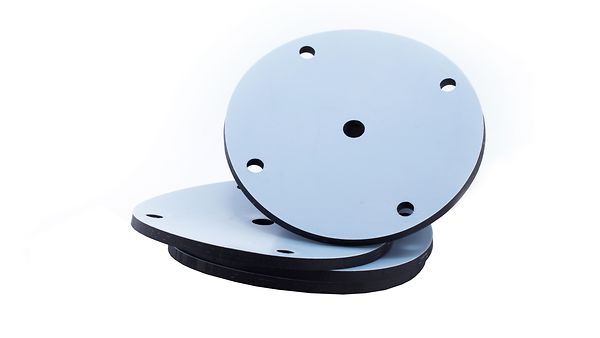

Value added assemblies like piston plates, flange rings, molded metal inserts, and PTFE bonding to improve performance and reliability
Combination of Single Coated and Double Coated style diaphragms, depending on application and requirements
Reduced assembly time and individual component costs
Improved adhesion resulting in longer cycle life and better performance than individual components that are bolted together in assembly

View Certificate Here

A quick reference guide to standard diaphragm tolerancing

Listing of available elastomers

Listing of available fabrics

Fill out your diaphragm design worksheet and connect with one of our engineers today to discuss your requirements
