Features & Benefits

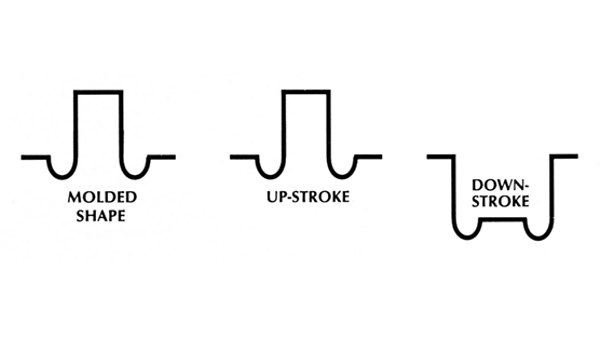

  • Diaphragm height (½ stroke length) is limited to approximately ¼ of the bore diameter.
  • Limited selection of fabric and elastomers.
  • Double-coating increases durability when in contact with rough surfaces.
  • Pre-molded into installed shape for easy assembly.
Read More...
Features & Benefits

Specifications

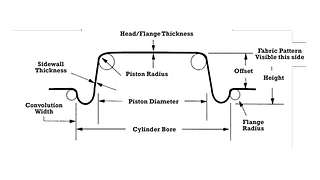

Double Coated Offset Convoluted


Cylinder Bore Range1.00-2.502.51-4.004.01-8.00over 8.00

Sidewall Thickness

0.015/0.025

(0.381/0.635)

0.020/0.030

(0.508/0.762)

0.032/0.048

(0.813/1.219)

0.070/0.090

(1.778/2.286)

Head/Flange Thickness

0.015/0.025

(0.381/0.635)

0.020/0.030

(0.508/0.762)

0.032/0.048

(0.813/1.219)

0.070/0.090

(1.778/2.286)

Piston Radius

0.125

(3.175)

0.156

(3.962)

0.250

(6.350)

0.370

(9.398)

Flange Radius

0.094

(2.388)

0.125

(3.175)

0.250

(6.350)

0.250

(6.350)

Convolution Width

0.125

(3.175)

0.156

(3.962)

0.250

(6.350)

0.375

(9.525)
