Single Coated Flat Flange Convoluted Diaphragms

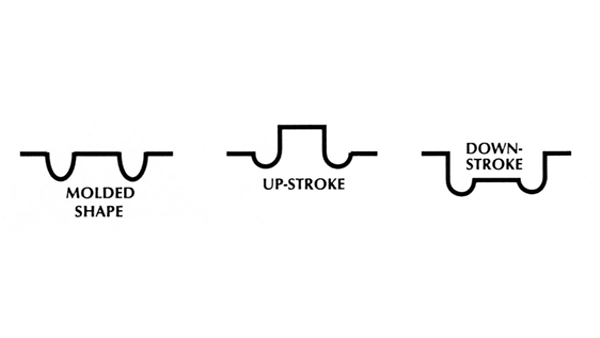

Single Coated diaphragms provide superior stroke capabilities and performance in applications where pressures are one directional
Single Coated diaphragms provide superior stroke capabilities and performance in applications where pressures are one directional
|

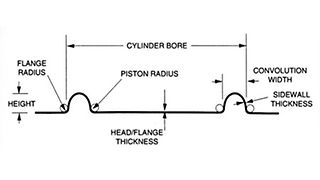

| Cylinder Bore Range | 0.25-0.99 | 1.00-2.50 | 2.51-4.00 | 4.01-8.00 | over 8.00 |
Sidewall Thickness | 0.013/0.017 (0.330/0.432) | 0.014/0.020 (0.356/0.508) | 0.020/0.030 (0.508/0.762) | 0.030/0.040 (0.762/1.016) | 0.038/0.055 (0.965/1.397) |
Head/Flange Thickness | 0.017/0.023 (0.432/0.584) | 0.015/0.025 (0.381/0.635) | 0.025/0.035 (0.635/0.889) | 0.030/0.040 (0.762/1.016) | 0.035/0.055 (0.889/1.397) |
Piston Radius | 0.031 (0.787) | 0.062 (1.575) | 0.094 (2.388) | 0.125 (3.175) | 0.125 (3.175) |
Flange Radius | 0.031 (0.787) | 0.062 (1.575) | 0.094 (2.388) | 0.125 (3.175) | 0.125 (3.175) |
Convolution Width | 0.085 (2.159) | 0.094 (2.388) | 0.250 (6.350) | 0.250 (6.350) | 0.250 (6.350) |
