Features & Benefits


  • Longer stroke than planar types, but more limited than Top Hat style.
  • Broad range of fabrics and elastomers.
  • Pressure applied from one direction only.

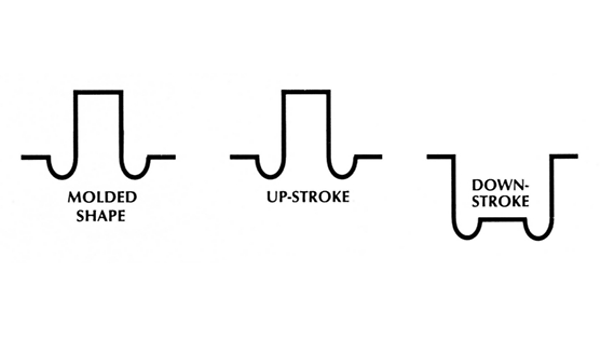

  • Total stroke length is twice offset.
  • Pre-molded into installed shape for easy assembly.


Read More...
Features & Benefits

Specifications

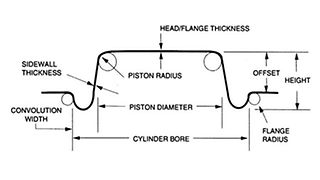

Single Coated Offset Convoluted Diaphragms


Cylinder Bore Range1.00-2.502.51-4.004.01-8.00over 8.00

Sidewall Thickness

0.015/0.025

(0.381/0.635)

0.020/0.030

(0.508/0.762)

0.030/0.040

(0.762/1.016)

0.038/0.052

(0.965/1.321)

Head/Flange Thickness

0.015/0.025

(0.381/0.635)

0.020/0.030

(0.508/0.762)

0.030/0.040

(0.762/1.016)

0.035/0.055

(0.889/1.397)

Piston Radius

0.125

(3.175)

0.156

(3.962)

0.250

(6.350)

0.310

(7.874)

Flange Radius

0.062

(1.575)

0.094

(2.388)

0.125

(3.175)

0.188

(3.175)

Convolution Width

0.125

(3.175)

0.156

(3.962)

0.250

(6.350)

0.375

(9.525)
